WindowGrid
Overview

WindowGrid is a modern window management program for Windows.

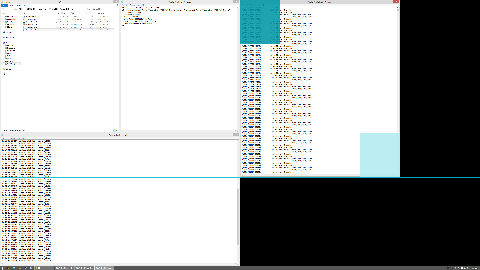

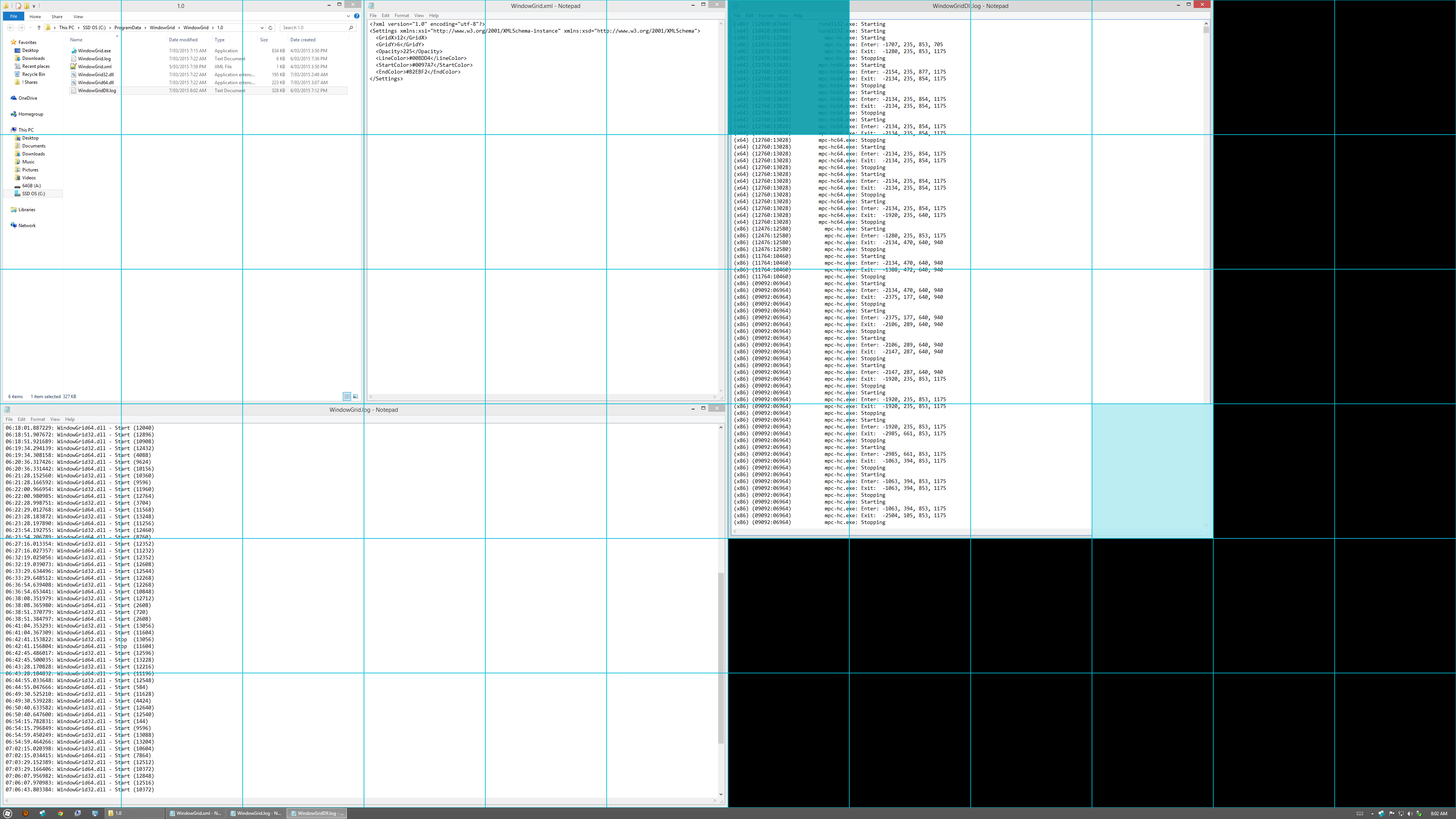

Example

 Allows the user to quickly and easily layout their windows on a dynamic grid using just the mouse.

 Gives functionality to the normally useless right mouse button when moving a window. Doing this will enable the grid snap mode.

Features

Present

  • Simple to control
  • Portable and Installable
  • Works with aerosnap
  • Unintrusive
  • Grid overlay can be customised
  • Can auto update
  • Customizable input

  • Supports Windows Vista (SP2), 7 (SP1), 8, 8.1 & 10
  • Supports x86 and x64
  • Written in C# and C++
  • Utilizes WPF

Future

  • Saved window locations
  • Theme Customization
Downloads
  WindowGrid_1.3.1.1.zip   (433.8KB)
Instructions

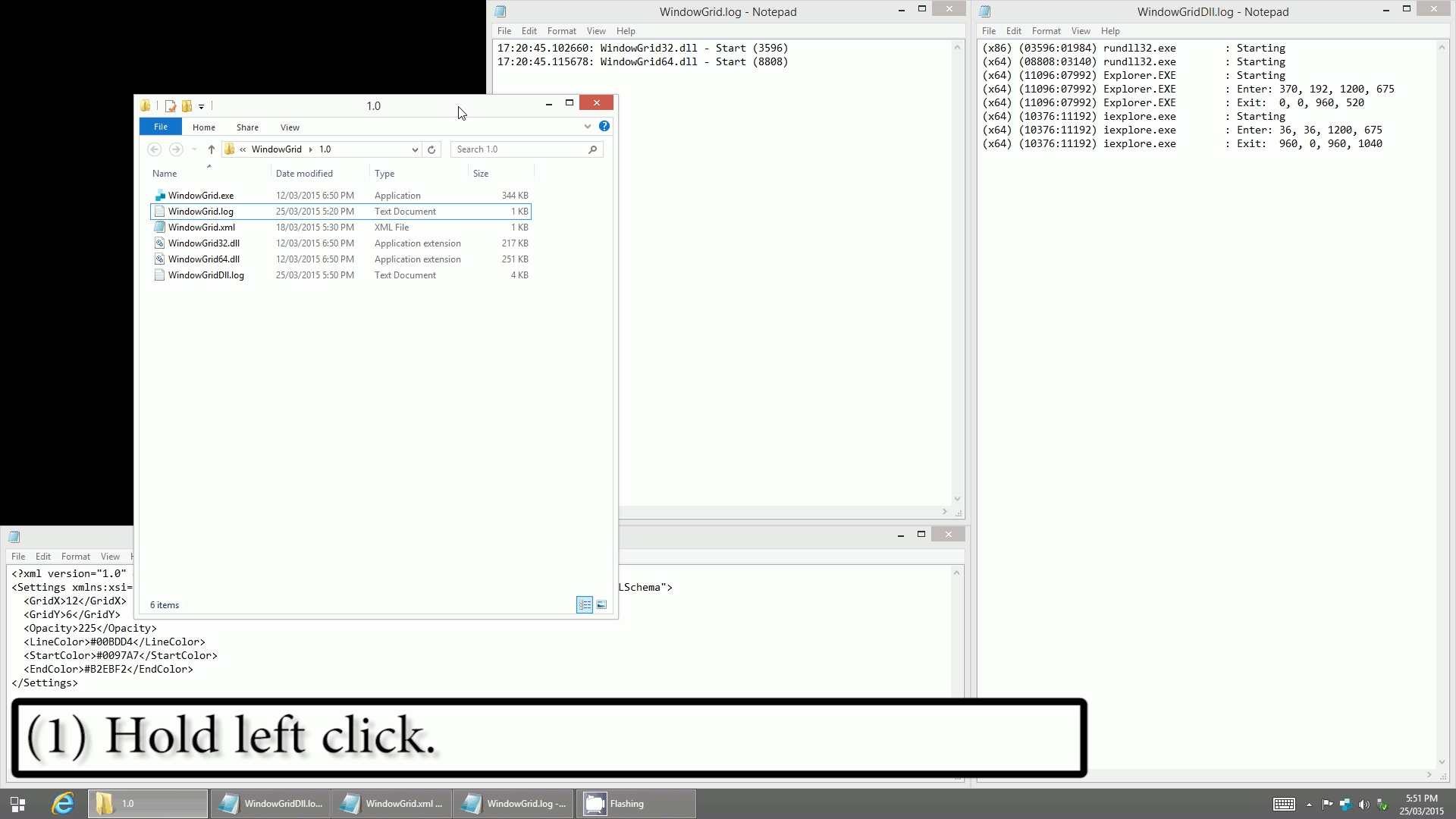

Start by moving a window (title bar/move command)
  • Hold left click while moving the window
  • Hold right click and move cursor to select the starting grid position of the window
  • Release right click and move cursor to resize the window
  • Release left click when window is as desired

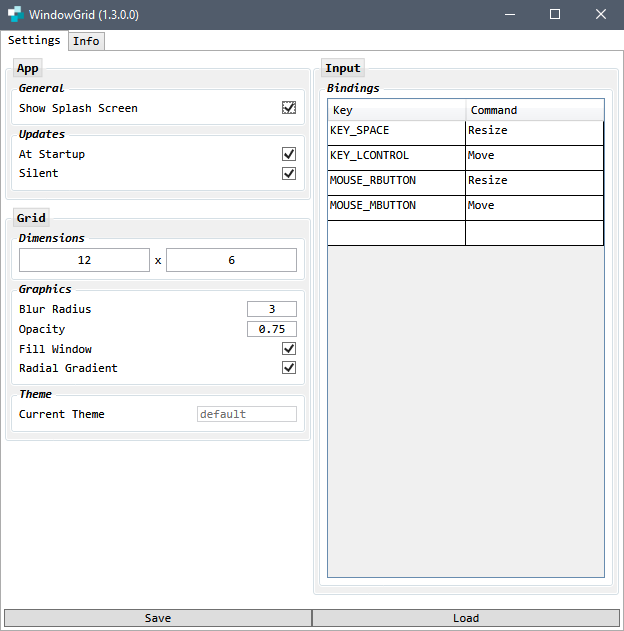

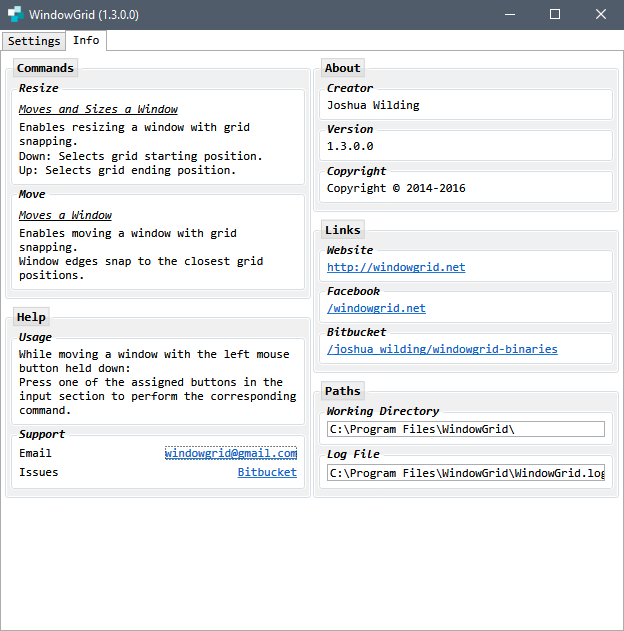

Screenshots
Issues
  • Crashes at startup (Requires Microsoft .NET Framework 4.6).
  • Grid overlay can sometimes be delayed.
  • The WindowGrid32.dll may need to be added to some virus scanners exclusion lists.
  • Problems when moving non-DPI aware windows between monitors with DPI scaling.

Please report any issues at: https://bitbucket.org/joshua_wilding/windowgrid-binaries/issues
 OR
Send an email to: windowgrid@gmail.com
Changelog
1.3.1.1
  • FIXED

    Re-added "Hardcodet.Wpf.TaskbarNotification.dll".

1.3.1.0
  • ADDED

    Transposing of grid when displaying on a monitor in portrait orientation (Height > Width).

  • MODIFIED

    Re-added recommended OS settings.

  • MODIFIED

    Moved overlay code into WindowGridOverlay.

  • FIXED

    Should now work on pre-Windows 8 again.

  • FIXED

    Removed update connection warning on startup.

1.3.0.0
  • ADDED

    Input customization.

  • UPDATED

    Now using WPF in place of WinForms.

  • MODIFIED

    New Interface.

  • FIXED

    Install related issues on specific locales (Was related to directory security).

  • FIXED

    A few DPI related issues.

  • FIXED

    Hook related issues (i.e. Tab tearing in Chrome).

  • FIXED

    Many other issues.

1.2.9.1
  • FIXED

    32bit OS issues.

1.2.9.0
  • ADDED

    Spacebar as an alternative to right click.

  • ADDED

    Move window mode when pressing middle click.

  • MODIFIED

    Drastically simplified the hook process.

  • FIXED

    Numerous issues.

1.2.8.2
  • FIXED

    Some install issues.

  • FIXED

    Auto start should now work correctly on Windows 7.

  • FIXED

    Small hook related problems.

1.2.8.1
  • FIXED

    Had issues updating from a path with spaces.

1.2.8.0
  • ADDED

    "Cover Window Overlay" option.

  • ADDED

    Install Dialog.

  • MODIFIED

    "WindowGrid.exe" will now use its running location as it's working directory rather than "ProgramData" (Portable).

  • FIXED

    Some hook related issues.

1.2.7.0
  • ADDED

    Option to disable splash screen.

  • ADDED

    Ability to change the grid colors from the context menu.

  • ADDED

    About menu.

1.2.6.1
  • ADDED

    Option to enable showing of window contents while dragging windows.

  • UPDATED

    Context Menu layout.

1.2.6.0
  • UPDATED

    Compiled using VS2015 from VS2013.

  • FIXED

    Window borders in Windows 10 display correctly now.

1.2.5.0
  • ADDED

    Auto updating on startup.

  • ADDED

    Windows 10 support.

  • ADDED

    Preliminary command line argument support.

  • FIXED

    Some scheduling related issues.

  • NOTE

    Some windows in Windows 10 may not display correctly.

1.2.4.1
  • ADDED

    More Logging.

  • FIXED

    Crash when using incorrect working directory.

  • FIXED

    Auto start issues.

1.2.4.0
  • FIXED

    Some performance and graphical issues related to the Grid.

  • FIXED

    Small hook related issue.

  • MODIFIED

    Unified the log files.

1.2.3.0
  • ADDED

    Update check.

  • FIXED

    Visual Studio would crash when moving floating windows.

1.2.2.1
  • FIXED

    Steam compatibility.

1.2.2.0
  • FIXED

    DLL now detaches from hooked process properly.

  • FIXED

    Some startup issues.

1.2.1.1
  • FIXED

    A single instance issue.

1.2.1.0
  • ADDED

    Install button in settings, installs the exe and adds shortcut to start menu.

  • MODIFIED

    Hook dlls now stored in internal zip file.

  • MODIFIED

    Compressed icon.

1.2.0.1
  • FIXED

    WindowGrid wouldn't activate if dragged from a maximized window.

1.2.0.0
  • ADDED

    New logo and color theme.

  • ADDED

    Customizable colors and opacity in 'Settings.xml'.

  • ADDED

    Logger to the C# component.

  • ADDED

    Supported OS' to the manifest.

  • FIXED

    Some issues.

1.1.0.0
  • UPDATED

    Grid renderer (Better layout and new start/end point indicators).

  • FIXED

    Some performance issues.

1.0.3.0
  • ADDED

    Grid renderer.

  • MODIFIED

    Hold right click to select starting grid, let go to start sizing window.

1.0.2.0
  • UPDATED

    Visual Studio redists are now statically linked (Shouldn't be required).

1.0.1.42191
  • UPDATED

    Context menu.

  • UPDATED

    Now a single file, settings are now stored in user directory.

  • ADDED

    Disabling of Windows Aero Shake in settings.

1.0.0.0
  • ADDED

    Initial Commit.
